What is an IC Socket?
An IC SOCKET (Integrated Circuit Socket) is a component used for installing and connecting integrated circuits (ICs). The design of an IC SOCKET aims to facilitate the insertion and removal of ICs while providing a reliable connection interface.
Features and Applications of IC Socket
- Installing Integrated Circuits:
An IC SOCKET is a component with slots where ICs can be inserted to ensure the chips are correctly placed and connected to the circuit board. - Convenience for Replacement and Maintenance:
One key advantage of using IC SOCKETs is the ease of replacing ICs. If a chip is damaged or needs replacement, it can be easily removed from the socket and replaced with a new chip without the need for soldering. - Avoiding Thermal Stress:
IC SOCKETs help to reduce thermal stress. In certain applications, ICs may generate heat. To prevent heat from affecting the circuit board, inserting the IC into a socket can reduce heat transfer to the board. - Testing and Debugging:
IC SOCKETs also facilitate testing and debugging during development and testing phases. Different models or versions of ICs can be easily swapped for performance testing or troubleshooting. - Protection Against Damage:
Using an IC SOCKET reduces the risk of IC damage caused by high temperatures or static electricity during the soldering process. - Variety of Specifications:
IC SOCKETs come in various specifications and models to meet different application needs. These include different pin counts, pitch sizes, and heights. Common specifications include PH 2.54 and PH 1.778.
Where to Buy IC Sockets
IC SOCKETs are considered a mature product. Taiwanese manufacturers like Chun Chi Industrial Co., Ltd. and Anytronic Corporation Limited have been producing IC SOCKETs since 1988. These products are made from materials like LCP and PBT and are available in a wide range of specifications. They are widely used in electronic devices such as motherboards, modems, remote controls, medical instruments, and more.
An introduction to the specification component names of IC Socket:

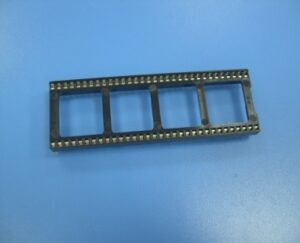

- Triple Horizontal Bar

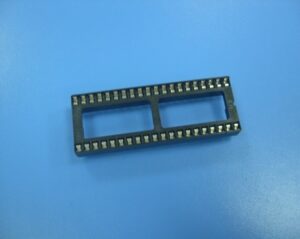

- Double Horizontal Bar

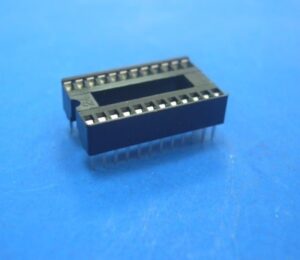

- Single Horizontal Bar
- No Horizontal Bar
