What is an IC Socket?
An IC Socket (Integrated Circuit Socket) is an electronic connector specifically designed for mounting integrated circuit (IC) components. Its primary function is to provide a pluggable interface that allows IC chips to be installed without direct soldering to the PCB, making testing, replacement, and maintenance more convenient.
Among the many types of IC sockets, machined pin sockets offer superior mechanical strength and electrical performance, and are widely used in high-reliability electronic devices.
Features and Applications of IC Sockets
Machined pins are made from solid metal rods through precision machining (usually with automatic lathes), offering structural and performance advantages over standard stamped contacts. Key features include:
-
High dimensional precision: Precisely machined pin geometry ensures stable mating and insertion.
-
Excellent contact reliability: Tighter contact with IC leads, with superior anti-oxidation treatment.
-
High durability: Supports thousands of insertion/removal cycles; ideal for testing and high-end applications.
-
Superior electrical performance: Excellent conductivity and stable impedance, suitable for high-speed signal transmission.
Other benefits include:
-
-
IC Installation: IC sockets have slots to securely insert IC chips, ensuring proper connection with the PCB.
-
Ease of replacement and maintenance: One of the major advantages is the convenience of replacing ICs. Damaged chips can be removed and replaced easily—no soldering required.
-
Reduced thermal stress: IC sockets help reduce heat stress by limiting heat transfer from the IC to the PCB during operation.
-
Testing and debugging: Ideal for development and testing stages; allows easy replacement of different IC models or versions for performance testing or troubleshooting.
-
Damage prevention: Using IC sockets minimizes the risk of damage to ICs caused by heat or static during soldering.
-
Available in multiple specifications:
IC sockets with machined pins come in a wide range of models to meet various application needs, including different pin counts, pitch, height, and orientation (90°/180°). Common pitches include PH 2.54 and PH 1.778.
Where to Buy IC Sockets
IC sockets are considered a mature product. Taiwanese manufacturers such as Chih Industrial Co., Ltd. and Anytronic Corporation Limited have been producing IC sockets since 1988. These sockets are available in materials like LCP and PBT, and in a full range of specifications. They are widely used in semiconductor testing and burn-in equipment, industrial control systems, advanced development boards and sample testing, medical electronics, aerospace, and military electronic systems.

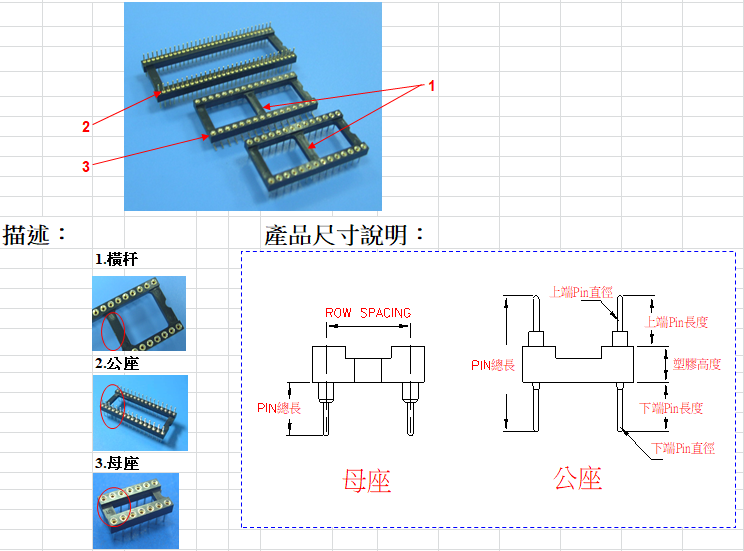

Overview of IC Socket Specifications and Part Names
