1. What is a Pin header
A “Pin header” is an electronic connector typically used to connect electronic components such as circuit boards, sensors, modules, etc., to a motherboard or other electronic devices. It usually consists of a plastic housing and a row of metal pins used for mating with corresponding “female headers.”
2.Features and Applications of Pin header
Electrical connection: Pin headers are primarily used to establish stable electrical connections between circuit boards or between circuit boards and other electronic components. Pins are inserted into matching connectors or sockets to transmit current, signals, and data.
Multiple specifications: Pin headers come in various specifications and models to meet the requirements of different applications. This includes different pin counts, arrangements, spacing, and heights. Common specifications include PH 5.08, PH 5.00, PH 3.81, PH 3.00, PH 2.54, PH 2.00, PH 1.27, PH 1.00, and PH 0.80.
Reliability: Pin headers are typically made of high-quality metal pins and insulating materials to ensure reliable connections. They are precision-manufactured to meet various industrial standards and specifications.
Versatility: Pin headers can be used for various applications, including connecting circuit boards, LED displays, communication devices, embedded systems, testing equipment, and many other electronic devices.
Customization options: Some customers require special pin headers to meet specific application requirements. This includes customized pin counts, arrangements, and special connection requirements.
Ease of connection: The design of pin headers makes them easy to connect and disconnect, which is useful for maintaining and repairing electronic equipment.
Low cost: Pin headers typically have lower manufacturing costs, making them an economical connector choice.
3. Where to Buy Pin header
Pin headers are considered mature products. Taiwanese Pin header manufacturers such as Chitech Industries Co., Ltd. and Anytronic Corporation Limited have been producing them since 1988. They offer various materials such as LCP and PBT, as well as a wide range of specifications. Their products are widely used in various electronic devices such as motherboards, modems, remote controls, medical equipment, etc.

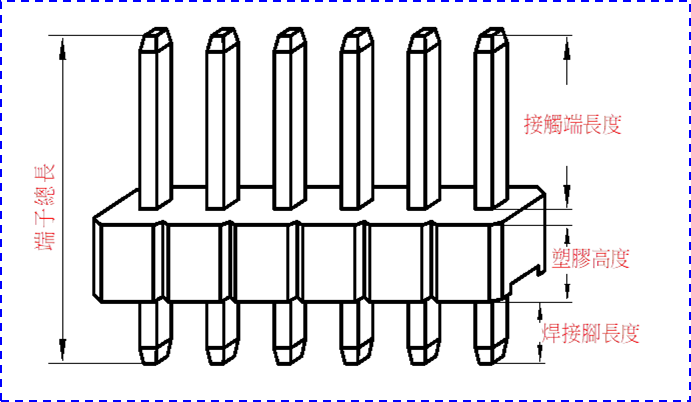

4. Introduction to Pin header Specifications and Component Names
